          Metal Processing - Grinding Machine - Centerless

          Makinist: Taşlama Makinesi - Merkezsiz


          Grinding Machine - Centerless

          Taşlama makineleri kullanılan Taşlama Makinesi - Merkezsiz JUNKER JUPITER 500


          • Amann Werkzeugmaschinen GmbH
          • Landshuter Straße 1
          • 85716 Unterschleißheim
          • Deutschland

          • (0049) 89 317754 0
            (0049) 89 3174262
          • info@amann-wzm.de
            www.amann-wzm.de
          #1006-17423 · Grinding Machine - Centerless

          JUNKER - JUPITER 500 - - 2015 - SIN840D

          Technical details
          grinding diameter max. 220 mm︱regulating wheel width 520 mm︱max. width of grinding wheel 520 mm︱Control SIN840D ︱min. workpiece diameter 3,00 mm︱workpiece length - max. 495 mm︱grinding wheel diameter CBN: 440 mm︱grinding wheel hole diameter 304,80 mm︱power capacity - grinding motor 51,00 kW︱peripheral speed 45 / 120 m/sec︱grinding head adjustment X1: 160 mm︱regulating wheel diameter max. 350 mm︱regulated disc boring 203,20 mm︱drive control wheel 11,50 kW︱regulating spindle adjustment 220 mm︱regulating wheel turning speeds 1 - 800 U/min︱regulating-spindle - swiveling B2: -0°15" -- +1° °︱regulating-spindle - tilting C2: -6 -- +6 °︱total power requirement 85,00 kW︱weight of the machine ca. 25,00 t︱
          Centerless grinding machine with SIEMENS Sinumerik 840D control; loading and unloading unit; dust-exhauster. Axes: X1 - Infeed of the wheelhead X2 - Infeed of the control headstock SP1 - Revolutions of the grinding wheel SP2 - Revolutions of the regulating wheel SP3 - Revolutions of the slide roller dresser U1 - Infeed of the grinding wheel dresser W1 - Longitudinal feed of the grinding wheel dresser U2 - Infeed of the regulating wheel dresser W2 - Longitudinal feed of the regulating wheel dresser C2 - Tilting of the control headstock (manual adjustment) B2 - Pivoting of the control headstock Machine can be inspected under power.
            grinding diameter max. 220 mm
            regulating wheel width 520 mm
            max. width of grinding wheel 520 mm
            Control SIN840D
            min. workpiece diameter 3,00 mm
            workpiece length - max. 495 mm
            grinding wheel diameter CBN: 440 mm
            grinding wheel hole diameter 304,80 mm
            power capacity - grinding motor 51,00 kW
            peripheral speed 45 / 120 m/sec
            grinding head adjustment X1: 160 mm
            regulating wheel diameter max. 350 mm
            regulated disc boring 203,20 mm
            drive control wheel 11,50 kW
            regulating spindle adjustment 220 mm
            regulating wheel turning speeds 1 - 800 U/min
            regulating-spindle - swiveling B2: -0°15" -- +1° °
            regulating-spindle - tilting C2: -6 -- +6 °
            total power requirement 85,00 kW
            weight of the machine ca. 25,00 t
            Description :
            Centerless grinding machine with SIEMENS Sinumerik 840D control;
            loading and unloading unit; dust-exhauster.
            Axes:
            X1 - Infeed of the wheelhead
            X2 - Infeed of the control headstock
            SP1 - Revolutions of the grinding wheel
            SP2 - Revolutions of the regulating wheel
            SP3 - Revolutions of the slide roller dresser
            U1 - Infeed of the grinding wheel dresser
            W1 - Longitudinal feed of the grinding wheel dresser
            U2 - Infeed of the regulating wheel dresser
            W2 - Longitudinal feed of the regulating wheel dresser
            C2 - Tilting of the control headstock (manual adjustment)
            B2 - Pivoting of the control headstock
            Machine can be inspected under power.
          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Merkezsiz SCHAUDT MIKROSA KRONOS S 250


          • FLECKENSTEIN Werkzeugmaschinen GmbH
          • Sommerweg 15
          • 63831 Wiesen
          • Deutschland

          • +49 (0) 6096 9706 0
            +49 (0) 6096 9706 20
          • fleckenstein@fleckenstein-machine.com
            www.fleckenstein-machine.com
          #1118-1568 · Grinding Machine - Centerless

          SCHAUDT MIKROSA - KRONOS S 250 - - 2010 - SINUMERIK 840 D

          Technical details
          grinding diameter max. 35 mm︱regulating wheel width 250 mm︱max. width of grinding wheel 250 mm︱Control SINUMERIK 840 D ︱max. grinding length while plunge grinding 245 mm︱grinding wheel diameter x width 450 x 250 mm︱regulating wheel diameter x width 250 x 250 mm︱grinding wheel power 15 kW︱Profiling of grinding wheel by diamond roll ︱Dynamic balancing unit DITTEL ︱workpiece handling ︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
          Machine bed made of mineral casting - thermostable and vibration damping - Foundation area 3,200 x 2,000 mm - Coolant discharge height approx. 500 mm - integrated bed flushing - levelling elements - Recesses for transport - Elements for mounting the switch cabinet Cross slide systems on the grinding wheel side X-slide - for wear compensation of the grinding wheel and the infeed movement for grinding and for dressing (X1 axis) with recirculating roller guides - Adjustment by means of digital three-phase servomotor via ball screw drive - smallest infeed increment 0.1 µm - Equipment with glass scale Z-slide - arranged on the X-slide - for transverse movement of the grinding wheel during dressing (Z2 axis) with recirculating roller guides - Adjustment by means of digital three-phase servomotor via ball screw drive - smallest infeed increment 0.1 µm grinding wheel headstock - with integrated protective cover in cast steel design - attached to Z-slide - Mounting of a grinding spindle with bearings on both sides - 6° inclined grinding spindle - mounted on both sides in anti-friction bearings - suitable for 250 mm wide grinding wheels - long-life grease lubrication - Bore diameter of the grinding wheel 203.2 mm - Max. Speed 7.200 min-1 Drive grinding spindle - Main drive for grinding wheel circumferential speed 40....150 m/sec via three-phase main spindle motor 15 kW (water-cooled) Remark: Use of recooling system or use of an existing cooling circuit Coolant conditions: - Filter fineness 100 µm - Cold water flow 8 l/min - Cooling capacity 2750 W - Coolant inlet temperature <25°C - Cooling medium - water or low-viscosity oils Cross slide systems on the regulating wheel side X-slide - for wear compensation of the regulating wheel and the feed motion for dressing (X4 axis) with recirculating roller guides - Adjustment by means of digital three-phase servomotor via ball screw drive - smallest infeed increment 0.1 µm - Equipment with glass scale Z-slide - arranged on the X-slide - for transverse movement of the regulating wheel during dressing (Z3 axis) with recirculating roller guides - Adjustment by means of digital three-phase servomotor via ball screw drive - smallest infeed increment 0.1 µm bearing housings - with drive for control spindle - arranged on the Z-slide regulating wheel lowering - manual clamping - Adjustment via adjusting spindle - Maximum lowering -20 to +40 mm - Angle of inclination at maximum lowering +/- 5° Control Spindle - mounted on both sides in anti-friction bearings - suitable for 250 mm wide regulating wheels - long-life grease lubrication - Bore diameter of the disc 127 mm - Control spindle drive via three-phase servo motor 5 kW - Dressing speed max. 1,000 min-1 - Working speed max. 500 min-1 Diamond roller device (without diamand roller) - located in the centre of the machine on the working level Complete with: - Bearing for diamond roller mandrel - direction of rotation in the same and opposite direction - Spindle speed up to 9.000 min-1 - Speed and coolant flow monitoring - diamond roll mandrel - Drive via three-phase motor - swiveling -3°<->0°<->+3° -3°->0°<->+3° -3°->0°->+3°-+3° -3°->+3° - Clamping width up to 135 mm - Diamond profile roller diameter 95 mm - Diamond form roller diameter 125 mm - Diamond roll mandrel diameter 52 mm Dressing device for regulating wheel - suitable for holding standing dressing tool (M 14 x 1) - located in the centre of the machine on the working level Full protection of working area - for coolant mist shielding with electrical safety door monitoring - Safety glass windows - Connecting piece for external oil mist extraction system Electrical system with switch cabinet and control unit - Switch cabinet permanently attached to the machine - Grid feed in from above - Switch cabinet cooling via external service water cooling (not included in scope of delivery) - Operating voltage 400 V, 50 Hz CNC control: - CNC control SIEMENS SINUMERIK 840 D and inverter system SIMODRIVE 611 D - Control panel can be swivelled and attached to the control cabinet - second identical control panel on the rear side of the machine - Operating panel front OP010 with 10.4" TFT colour display - 19" Push Button Panel (PP012) and user-specific extensions of the PP012 - 3 spindles and 4 position-controlled servo axes with digital setpoint interface - Use of "Safety Integrated" with fail-safe modules (Profisafe) - Parameter selection, fault diagnosis and operator guidance through clear menu structure - Constant grinding and regulating wheel peripheral speed - Integrated hardware and software for remote diagnosis and teleservice - Connection via Ethernet Additional monitoring of complete machine Handset: - incl. function extension - Start/Stop Produce - Input correction of the grinding gap with confirmation - retreat - emergency stop - Move to home position - acknowledgement button - override switch - incl. 10 m cable - pluggable to main control unit Grinding wheel incision detection: - in conjunction with profile roller truing device consisting of - Electronics AE6000 incl. software for 4 sensors Function: - visual control with indication on the display - Cut recognition of the grinding wheel during dressing Dresser detection control wheel - in conjunction with dresser detection Grinding wheel consisting of - additional sensor Function: - visual control with indication on the display - Bleed detection of the regulating wheel during dressing Incision detection workpiece: - in conjunction with dresser detection Grinding wheel - 1 sensor Function: - visual control with indication on the display - Cut detection of the grinding wheel on the workpiece Dynamic balancing device DITTEL consisting of - 1 built-in balancer with integrated conless receiver - 1 control unit in control cabinet - 1 electronic display integrated in the control panel - 1 conless transmitter with speed sensor Fire extinguishing system BATEC - CO² fire extinguishing system completely installed (delivery without CO² bottle) - Interface to the machine control system - Detector for switching off machine function - controlled fire damper at the suction nozzle Preperation of external coolant system consisting of - electric main coolant valve mounted on the machine - Coolant return interface Coolant used so far: Oil Maximum temperature: 25 °C Temperature constancy: +/- 1 °C/h Quantity: 150 l/min Pressure: 3,5 bar filtration degree: 20 µm - Connection for a rinsing gun incl. holder for cleaning the interior of the machine - prepared for high pressure rinsing of the grinding wheel, operating pressure approx. 10 bar, (high pressure) pressure pump not included) Automatic warm-up of the basic machine The warm-up function shortens the starting phase of the grinding machine. Conditions for the machine is ready for warm-up: - Machine is in basic position - No emergency stop error message is pending - No retraction Error message is pending - Drives and control voltage are switched off - Compressed air is available The machine is started via software time switch with the following sequence: - Switch on control voltage - Switch on drives - Referencing of all NC axes - Switch on grinding wheel, regulating wheel and coolant. - Disable screen darkening Automation for loading and unloading rotor shafts Designed for maximum workpiece diameter 60 mm, maximum workpiece length 160 mm basic handling - external with usable table width 750 mm - NC axes for horizontal and vertical travel loading portal - base frame - 2 NC axes for horizontal and vertical movement Basic gripping device 1-fold mechanical - for attachment to the basic handling system - mechanical gripper basic device for radial gripping of the shafts - 1 pair of gripper fingers each for radial gripping adapted to previous workpieces - 1 delivery prism for 1 finished part, arranged below the horizontal axis infeed belt - prism cycle belt - Length approx. 800 mm - with substructure and support at belt end - Side and top guide for securing the workpiece position - single-track prismatic clockband - Belt with prismatic milling on the transport side for the exception of the workpieces - Sensoric position control and sensoric recognition of workpiece presence - Storage capacity for approx. 9 workpieces Converter, Feeder - with mechanical radial gripper - Converter with a pneumatic horizontal and vertical axis and integrated, displaceable intermediate stop module - 1 set of gripper fingers The converter can move to three different positions (infeed cycle belt, measuring point, intermediate deposit prism under the loader axis). Preparation for integration of a measuring point - Measuring point integration for pre-process length measurement and DMC - Integration of a measuring point to be mounted from the handling table Clip-on prism for measured workpiece blank - for depositing the measured raw part under the horizontal axis of the gantry loader in transfer position of the gripper Pneumatically driven drawer - is moved into the traverse path of the Horizotal axis if SPC is required - is equipped with a bowl to hold the workpieces NIO clockband - Length approx. 1,200 mm - with 2 workpiece tracks - 3-track conveyor belt for separate depositing of workpieces with the NIO features "DMC not read" and "length tolerance not met." - Each workpiece track is assigned a NIO marker. - with substructure and support at belt end - Side and top guide for securing the workpiece position - single-track prismatic clockband - Belt with prismatic milling on the transport side for holding the workpieces - Sensory position control and sensory recognition of workpiece presence - Storage capacity sufficient for approx. 16 workpieces - the NIO band can be clocked manually via a button Automatic central lubrication - Automatic lubrication of all guide axes via a central pump lubrication unit Other - Protective device (CE-compliant), window areas equipped with Makrolon, 2 large double-action Doors with EUCHNER safety switches - Pneumatic device with maintenance unit and soft start - Electrics at the Profibus Measurement control for rotor shafts consisting of: measuring device - one base plate each prepared for integration into the loader - Integration of 2 measuring systems in separate mechanical extensions - Version complete with maintenance unit, cylinders, valves and proximity switches - wired to Muhr CUbe67 - manual calibration of the measuring point by the operator Measuring electronics P7me with housing IP 54 - for measured value acquisition - with Profibus interface - Transfer of the measurement data to the machine control system - with software Length measuring system - required for actual measurement of the base "B" to the stop side - for integration in charging automation -2 Workpiece pre-feed prisms - horizontal slide unit (pneumatically adjustable) - Preparation for integration of a reader for DMC acquisition - mechanical device for rotation of the parts for DMC detection Measuring device "Rotor consisting of - Pre-process measuring device for length measurement before grinding operation - with horizontal workpiece support - with workpiece orientation - with one probe against mechanical reference - Connection to common measuring electronics with post-proc Equipment/accessories - Centerless external cylindrical grinding machine KRONOS S 250 for plunge-cut grinding (6°) - Dynamic balancing device make DITTEL - Grinding wheel holder with balancing weights - Stand for control spindle with portal bearings - Device for adjusting the height of the workpiece - Coolant main valve (electric) for connection to central coolant supply - machine light - Equipping the feed axis Z2 with glass scale - Equipping the feed axis Z3 with glass scale - Interface for a central coolant system - Interface for coolant return - Automation for loading and unloading rotor shafts - Extension of the control components integrated in the control cabinet - Electrical and mechanical interface for loading and unloading system - Interface for a DataMatrixCode reader - Electrical interface for measurement control (32 I/O) - Workpiece support holder for plunge grinding - Workpiece support for plunge grinding - Pneumatically actuated hold-down device - Needle nozzles for plunge grinding (depending on workpiece) - Adjustable stop for workpiece support holder - Additional monitoring of complete machine - second control panel at the rear of the machine - operating handset - Cut detection Grinding wheel - Bleed detection Control wheel - Cut Recognition Workpiece - grinding wheel flushing - Additional regulating wheel unit - fire extinguishing system - Extension of the switch cabinet cooling system - Cooling of the control point - Automatic warm-up The machine was connected to a central coolant supply (grinding oil), and is therefore supplied without its own coolant system. The cooling of the grinding motor as well as the switch cabinet was carried out by decentralised service water cooling and must be ensured by a new cold water unit if necessary.
            grinding diameter max. 35 mm
            regulating wheel width 250 mm
            max. width of grinding wheel 250 mm
            Control SINUMERIK 840 D
            max. grinding length while plung. 245 mm
            grinding wheel diameter x width 450 x 250 mm
            regulating wheel diameter x widt. 250 x 250 mm
            grinding wheel power 15 kW
            Dynamic balancing unit DITTEL
            Description :
            Machine bed made of mineral casting
            - thermostable and vibration damping
            - Foundation area 3,200 x 2,000 mm
            - Coolant discharge height approx. 500 mm
            - integrated bed flushing
            - levelling elements
            - Recesses for transport
            - Elements for mounting the switch cabinet

            Cross slide systems on the grinding wheel side X-slide
            - for wear compensation of the grinding wheel and the infeed movement for
            grinding
            and for dressing (X1 axis) with recirculating roller guides
            - Adjustment by means of digital three-phase servomotor via ball screw drive
            - smallest infeed increment 0.1 µm
            - Equipment with glass scale Z-slide
            - arranged on the X-slide
            - for transverse movement of the grinding wheel during dressing (Z2 axis) with
            recirculating roller guides
            - Adjustment by means of digital three-phase servomotor via ball screw drive
            - smallest infeed increment 0.1 µm
            grinding wheel headstock
            - with integrated protective cover in cast steel design
            - attached to Z-slide
            - Mounting of a grinding spindle with bearings on both sides
            - 6° inclined

            grinding spindle
            - mounted on both sides in anti-friction bearings
            - suitable for 250 mm wide grinding wheels
            - long-life grease lubrication
            - Bore diameter of the grinding wheel 203.2 mm
            - Max. Speed 7.200 min-1

            Drive grinding spindle
            - Main drive for grinding wheel circumferential speed 40....150 m/sec
            via three-phase main spindle motor 15 kW (water-cooled)
            Remark:
            Use of recooling system or use of an existing cooling circuit
            Coolant conditions:
            - Filter fineness 100 µm
            - Cold water flow 8 l/min
            - Cooling capacity 2750 W
            - Coolant inlet temperature <25°C
            - Cooling medium - water or low-viscosity oils

            Cross slide systems on the regulating wheel side X-slide
            - for wear compensation of the regulating wheel and the feed motion for dressing
            (X4 axis) with recirculating roller guides
            - Adjustment by means of digital three-phase servomotor via ball screw drive
            - smallest infeed increment 0.1 µm
            - Equipment with glass scale
            Z-slide
            - arranged on the X-slide
            - for transverse movement of the regulating wheel during dressing (Z3 axis)
            with recirculating roller guides
            - Adjustment by means of digital three-phase servomotor via ball screw drive
            - smallest infeed increment 0.1 µm
            bearing housings
            - with drive for control spindle
            - arranged on the Z-slide
            regulating wheel lowering
            - manual clamping
            - Adjustment via adjusting spindle
            - Maximum lowering -20 to +40 mm
            - Angle of inclination at maximum lowering +/- 5°

            Control Spindle
            - mounted on both sides in anti-friction bearings
            - suitable for 250 mm wide regulating wheels
            - long-life grease lubrication
            - Bore diameter of the disc 127 mm
            - Control spindle drive via three-phase servo motor 5 kW
            - Dressing speed max. 1,000 min-1
            - Working speed max. 500 min-1

            Diamond roller device (without diamand roller)
            - located in the centre of the machine on the working level
            Complete with:
            - Bearing for diamond roller mandrel
            - direction of rotation in the same and opposite direction
            - Spindle speed up to 9.000 min-1
            - Speed and coolant flow monitoring
            - diamond roll mandrel
            - Drive via three-phase motor
            - swiveling -3°<->0°<->+3° -3°->0°<->+3° -3°->0°->+3°-+3° -3°->+3°
            - Clamping width up to 135 mm
            - Diamond profile roller diameter 95 mm
            - Diamond form roller diameter 125 mm
            - Diamond roll mandrel diameter 52 mm

            Dressing device for regulating wheel
            - suitable for holding standing dressing tool (M 14 x 1)
            - located in the centre of the machine on the working level

            Full protection of working area
            - for coolant mist shielding with electrical safety door monitoring
            - Safety glass windows
            - Connecting piece for external oil mist extraction system

            Electrical system with switch cabinet and control unit
            - Switch cabinet permanently attached to the machine
            - Grid feed in from above
            - Switch cabinet cooling via external service water cooling (not included in
            scope of delivery)
            - Operating voltage 400 V, 50 Hz
            CNC control:
            - CNC control SIEMENS SINUMERIK 840 D and inverter system SIMODRIVE 611 D
            - Control panel can be swivelled and attached to the control cabinet
            - second identical control panel on the rear side of the machine
            - Operating panel front OP010 with 10.4" TFT colour display
            - 19" Push Button Panel (PP012) and user-specific extensions of the PP012
            - 3 spindles and 4 position-controlled servo axes with digital setpoint
            interface
            - Use of "Safety Integrated" with fail-safe modules (Profisafe)
            - Parameter selection, fault diagnosis and operator guidance through clear menu
            structure
            - Constant grinding and regulating wheel peripheral speed
            - Integrated hardware and software for remote diagnosis and teleservice
            - Connection via Ethernet

            Additional monitoring of complete machine
            Handset:
            - incl. function extension
            - Start/Stop Produce
            - Input correction of the grinding gap with confirmation
            - retreat
            - emergency stop
            - Move to home position
            - acknowledgement button
            - override switch
            - incl. 10 m cable
            - pluggable to main control unit
            Grinding wheel incision detection:
            - in conjunction with profile roller truing device
            consisting of
            - Electronics AE6000 incl. software for 4 sensors
            Function:
            - visual control with indication on the display
            - Cut recognition of the grinding wheel during dressing

            Dresser detection control wheel
            - in conjunction with dresser detection Grinding wheel
            consisting of
            - additional sensor
            Function:
            - visual control with indication on the display
            - Bleed detection of the regulating wheel during dressing
            Incision detection workpiece:
            - in conjunction with dresser detection Grinding wheel
            - 1 sensor
            Function:
            - visual control with indication on the display
            - Cut detection of the grinding wheel on the workpiece

            Dynamic balancing device DITTEL
            consisting of
            - 1 built-in balancer with integrated conless receiver
            - 1 control unit in control cabinet
            - 1 electronic display integrated in the control panel
            - 1 conless transmitter with speed sensor

            Fire extinguishing system BATEC
            - CO² fire extinguishing system completely installed (delivery without CO²
            bottle)
            - Interface to the machine control system
            - Detector for switching off machine function
            - controlled fire damper at the suction nozzle

            Preperation of external coolant system
            consisting of
            - electric main coolant valve mounted on the machine
            - Coolant return interface
            Coolant used so far: Oil
            Maximum temperature: 25 °C
            Temperature constancy: +/- 1 °C/h
            Quantity: 150 l/min
            Pressure: 3,5 bar
            filtration degree: 20 µm
            - Connection for a rinsing gun incl. holder for cleaning the interior of the
            machine
            - prepared for high pressure rinsing of the grinding wheel, operating pressure
            approx. 10 bar, (high pressure)
            pressure pump not included)

            Automatic warm-up of the basic machine
            The warm-up function shortens the starting phase of the grinding machine.
            Conditions for
            the machine is ready for warm-up:
            - Machine is in basic position
            - No emergency stop error message is pending
            - No retraction Error message is pending
            - Drives and control voltage are switched off
            - Compressed air is available
            The machine is started via software time switch with the following sequence:
            - Switch on control voltage
            - Switch on drives
            - Referencing of all NC axes
            - Switch on grinding wheel, regulating wheel and coolant.
            - Disable screen darkening

            Automation for loading and unloading rotor shafts
            Designed for maximum workpiece diameter 60 mm, maximum workpiece length 160 mm
            basic handling
            - external with usable table width 750 mm
            - NC axes for horizontal and vertical travel
            loading portal
            - base frame
            - 2 NC axes for horizontal and vertical movement
            Basic gripping device 1-fold mechanical
            - for attachment to the basic handling system
            - mechanical gripper basic device for radial gripping of the shafts
            - 1 pair of gripper fingers each for radial gripping adapted to previous
            workpieces
            - 1 delivery prism for 1 finished part, arranged below the horizontal axis
            infeed belt - prism cycle belt
            - Length approx. 800 mm
            - with substructure and support at belt end
            - Side and top guide for securing the workpiece position
            - single-track prismatic clockband
            - Belt with prismatic milling on the transport side for the exception of the
            workpieces
            - Sensoric position control and sensoric recognition of workpiece presence
            - Storage capacity for approx. 9 workpieces
            Converter, Feeder
            - with mechanical radial gripper
            - Converter with a pneumatic horizontal and vertical axis and integrated,
            displaceable
            intermediate stop module
            - 1 set of gripper fingers
            The converter can move to three different positions (infeed cycle belt,
            measuring point, intermediate deposit prism under the loader axis).
            Preparation for integration of a measuring point
            - Measuring point integration for pre-process length measurement and DMC
            - Integration of a measuring point to be mounted from the handling table
            Clip-on prism for measured workpiece blank
            - for depositing the measured raw part under the horizontal axis of the gantry
            loader in transfer
            position of the gripper
            Pneumatically driven drawer
            - is moved into the traverse path of the Horizotal axis if SPC is required
            - is equipped with a bowl to hold the workpieces
            NIO clockband
            - Length approx. 1,200 mm
            - with 2 workpiece tracks
            - 3-track conveyor belt for separate depositing of workpieces with the NIO
            features
            "DMC not read" and "length tolerance not met."
            - Each workpiece track is assigned a NIO marker.
            - with substructure and support at belt end
            - Side and top guide for securing the workpiece position
            - single-track prismatic clockband
            - Belt with prismatic milling on the transport side for holding the workpieces
            - Sensory position control and sensory recognition of workpiece presence
            - Storage capacity sufficient for approx. 16 workpieces
            - the NIO band can be clocked manually via a button
            Automatic central lubrication
            - Automatic lubrication of all guide axes via a central pump lubrication unit
            Other
            - Protective device (CE-compliant), window areas equipped with Makrolon, 2
            large double-action
            Doors with EUCHNER safety switches
            - Pneumatic device with maintenance unit and soft start
            - Electrics at the Profibus

            Measurement control for rotor shafts
            consisting of:
            measuring device
            - one base plate each prepared for integration into the loader
            - Integration of 2 measuring systems in separate mechanical extensions
            - Version complete with maintenance unit, cylinders, valves and proximity
            switches
            - wired to Muhr CUbe67
            - manual calibration of the measuring point by the operator
            Measuring electronics P7me with housing IP 54
            - for measured value acquisition
            - with Profibus interface
            - Transfer of the measurement data to the machine control system
            - with software

            Length measuring system
            - required for actual measurement of the base "B" to the stop side
            - for integration in charging automation
            -2 Workpiece pre-feed prisms
            - horizontal slide unit (pneumatically adjustable)
            - Preparation for integration of a reader for DMC acquisition
            - mechanical device for rotation of the parts for DMC detection
            Measuring device "Rotor
            consisting of
            - Pre-process measuring device for length measurement before grinding operation
            - with horizontal workpiece support
            - with workpiece orientation
            - with one probe against mechanical reference
            - Connection to common measuring electronics with post-proc

            Equipment/accessories
            - Centerless external cylindrical grinding machine KRONOS S 250 for plunge-cut
            grinding (6°)
            - Dynamic balancing device make DITTEL
            - Grinding wheel holder with balancing weights
            - Stand for control spindle with portal bearings
            - Device for adjusting the height of the workpiece
            - Coolant main valve (electric) for connection to central coolant supply
            - machine light
            - Equipping the feed axis Z2 with glass scale
            - Equipping the feed axis Z3 with glass scale
            - Interface for a central coolant system
            - Interface for coolant return
            - Automation for loading and unloading rotor shafts
            - Extension of the control components integrated in the control cabinet
            - Electrical and mechanical interface for loading and unloading system
            - Interface for a DataMatrixCode reader
            - Electrical interface for measurement control (32 I/O)
            - Workpiece support holder for plunge grinding
            - Workpiece support for plunge grinding
            - Pneumatically actuated hold-down device
            - Needle nozzles for plunge grinding (depending on workpiece)
            - Adjustable stop for workpiece support holder
            - Additional monitoring of complete machine
            - second control panel at the rear of the machine
            - operating handset
            - Cut detection Grinding wheel
            - Bleed detection Control wheel
            - Cut Recognition Workpiece
            - grinding wheel flushing
            - Additional regulating wheel unit
            - fire extinguishing system
            - Extension of the switch cabinet cooling system
            - Cooling of the control point
            - Automatic warm-up

            The machine was connected to a central coolant supply (grinding oil), and is
            therefore supplied without its own coolant system.
            The cooling of the grinding motor as well as the switch cabinet was carried out
            by decentralised service water cooling and must be ensured by a new cold water
            unit if necessary.

          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama makinesi ikinci el araç TSCHUDIN ecoLINE 400


          • Bema Werkzeugmaschinen
          • Hegelstr. 28
          • 73230 Kirchheim
          • Deutschland

          • +49 702171799
            +49 7021978711
          • bema@gebrauchtmaschine.de
            www.gebrauchtmaschine.de
          #1056-8090 · Grinding Machine - Centerless

          TSCHUDIN - ecoLINE 400 - - 2007 - Fanuc 21i

          Technical details
          grinding diameter max. 100 mm︱regulating wheel width 250 mm︱max. width of grinding wheel 250 mm︱Control Fanuc 21i ︱max. dia. of grinding wheel 400 mm︱regulating wheel diameter 225 mm︱grinding motor 11 kW︱drive control wheel 3,7 kW︱regulated wheel - helical adjustment +/-5 °︱peripheral speed 50 m/sec︱total power requirement kW︱weight of the machine ca. 4,5 t︱dimensions of the machine ca. 1,88x2,37x1,95 m︱
          machine is like new. According to the first owner max. 100 switch hours. Dressing spindle Dr. Kaiser Fanuc 21i-MB
            grinding diameter max. 100 mm
            regulating wheel width 250 mm
            max. width of grinding wheel 250 mm
            Control Fanuc 21i
            max. dia. of grinding wheel 400 mm
            regulating wheel diameter 225 mm
            grinding motor 11 kW
            drive control wheel 3,7 kW
            regulated wheel - helical adjust. +/-5 °
            peripheral speed 50 m/sec
            weight of the machine ca. 4,5 t
            dimensions of the machine ca. 1,88x2,37x1,95 m
            Description :
            machine is like new.
            According to the first owner max. 100 switch hours.

            Dressing spindle Dr. Kaiser

            Fanuc 21i-MB
          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Centerless MIKROSA KRONOS L ikinci el araç


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com
          #1049-722077 · Grinding Machine - Centerless

          MIKROSA - KRONOS L - - 2005 - SIEMENS 840 D

          Technical details
          grinding diameter max. 250 mm︱regulating wheel width 660 mm︱max. width of grinding wheel 660 mm︱Control SIEMENS 840 D ︱total power requirement 110 kW︱weight of the machine ca. 15000 kg︱dimensions of the machine ca. m︱
          M I K R O S A High performance Wide wheel CNC Centreless Cylindrical Grinding machine Model KRONOS L Year 2005 Serial No. 510 07 003 _______________________________________________________ Grinding Ø, max. 5 - 250 mm Max. length of workpiece when plunge-cut grinding 655 mm Grinding wheel size: Ø min. / max. 400 / 600 mm Ø CBN-wheel 500 mm Width 660 mm Grinding speed (standard- / CBN-wheels) 63 / 120 m/s Grinding spindle power 60 / 100 kW Regulating wheel size: Ø min. / max. 280 / 400 mm Width 660 mm Regulating wheel speeds stepless 5 – 700 mm Total electrical load 110 kW - 400 V - 50 Hz Weight 15,000 kg Accessories/Special Features * The machine is built on a GRANITAN machine bed and is designed with a fixed grinding gap. All Infeed- and compensation movements are executed by the grindinghead- and the regulatinghead-slide. This allows a workpiece feeding at a fixed location when through-feed grinding. * SIEMENS CNC-control model 840 D for display and control of 9 CNC-axis. Exact positioning of the slides by glas scales. * Mobile hand operator with electronic handwheel * Sophisticated application specific operating software for all grinding- and dressing processes with Technology support and tool- and Machine maintenance-management. * Workpiece support for through-feed grinding is mounted on the machine. * Reinforced grinding spindle with double bearing and automatic balancing device. * Regulating spindle with double bearing, stepless spindle speeds regulation and can be adjusted axially as well as tilted. * The regulating spindle slide is equipped with a swivelling B1-axis by max.1° * 2-axis-CNC-dressing devices (interpolating) for diamond blades, single point diamond or diamond rolls for grinding wheel and regulating wheel. * Enclosed working are with safety covers. * Separate control cabinet, separate lubrication unit, various accessories, manuals * Regrettably the workpiece feeders and the coolant unit has remained at the suppliers factory. Condition : very good, can be inspected under power. Due to the grinding wheel size and the condition of the machine this seems a rare opportunity. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.
            grinding diameter max. 250 mm
            regulating wheel width 660 mm
            max. width of grinding wheel 660 mm
            Control SIEMENS 840 D
            total power requirement 110 kW
            weight of the machine ca. 15000 kg
            Description :
            M I K R O S A
            High performance Wide wheel CNC Centreless Cylindrical Grinding machine
            Model KRONOS L Year 2005 Serial No. 510 07 003
            _______________________________________________________

            Grinding Ø, max. 5 - 250 mm
            Max. length of workpiece when plunge-cut grinding 655 mm

            Grinding wheel size: Ø min. / max. 400 / 600 mm
            Ø CBN-wheel 500 mm
            Width 660 mm
            Grinding speed (standard- / CBN-wheels) 63 / 120 m/s
            Grinding spindle power 60 / 100 kW

            Regulating wheel size: Ø min. / max. 280 / 400 mm
            Width 660 mm
            Regulating wheel speeds stepless 5 – 700 mm

            Total electrical load 110 kW - 400 V - 50 Hz
            Weight 15,000 kg

            Accessories/Special Features

            * The machine is built on a GRANITAN machine bed and is designed with a
            fixed grinding gap. All Infeed- and compensation movements are executed by
            the grindinghead- and the regulatinghead-slide. This allows a workpiece
            feeding at a fixed location when through-feed grinding.
            * SIEMENS CNC-control model 840 D for display and control of 9 CNC-axis.
            Exact positioning of the slides by glas scales.
            * Mobile hand operator with electronic handwheel
            * Sophisticated application specific operating software for all grinding- and
            dressing processes with Technology support and tool- and Machine
            maintenance-management.
            * Workpiece support for through-feed grinding is mounted on the machine.
            * Reinforced grinding spindle with double bearing and automatic balancing
            device.
            * Regulating spindle with double bearing, stepless spindle speeds regulation
            and can be adjusted axially as well as tilted.
            * The regulating spindle slide is equipped with a swivelling B1-axis by max.1°
            * 2-axis-CNC-dressing devices (interpolating) for diamond blades, single
            point diamond or diamond rolls for grinding wheel and regulating wheel.
            * Enclosed working are with safety covers.
            * Separate control cabinet, separate lubrication unit, various accessories,
            manuals
            * Regrettably the workpiece feeders and the coolant unit has remained at the
            suppliers factory.


            Condition : very good, can be inspected under power.
            Due to the grinding wheel size and the condition of the
            machine this seems a rare opportunity.
            Delivery : Ex stock, as inspected.
            Payment : Net, after conclusion of contract.

          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Merkezsiz SCHAUDT MIKROSA Kronos M 250


          • Kemmerich Werkzeugmaschinen GmbH
          • Im Rottfeld 1a
          • 40789 Monheim am Rhein
          • Deutschland

          • +49 2173 207474
            +49 2173 207473
          • info@kemmerich.biz
            www.kemmerich.biz
          #1020-15875 · Grinding Machine - Centerless

          SCHAUDT MIKROSA - Kronos M 250 - - 2003 - Siemens 840D

          Technical details
          grinding diameter max. 100 mm︱regulating wheel width (350x) 250 mm︱max. width of grinding wheel (650x) 250 mm︱Control Siemens 840D ︱max. workpiece diameter 100 mm︱min. workpiece diameter 1,5 mm︱workpiece length - max. 245 mm︱grinding motor 22 kW︱drive control wheel 5,7 kW︱regulating wheel turning speeds 5 - 600 (900) U/min︱grinding wheel adjustment 0,0001 mm︱total power requirement 56 kW︱weight of the machine ca. 13 t︱dimensions of the machine ca. 5,7 x 3,3 x 2,3 m︱
          Centerless grinding machine for infeed & through feed grinding, Equipped with: - CNC control Siemens Sinumerik 840 D - Balancing electronics MPM AB / SB 100 - ASW Portal gripper for shafts (regulating slide) with feed & discharge belt - Pallet circulation system (SCHUSTER) - Measuring point Etamic for regulating slide 2 machines available (2002/2003)
            grinding diameter max. 100 mm
            regulating wheel width (350x) 250 mm
            max. width of grinding wheel (650x) 250 mm
            Control Siemens 840D
            max. workpiece diameter 100 mm
            min. workpiece diameter 1,5 mm
            workpiece length - max. 245 mm
            grinding motor 22 kW
            drive control wheel 5,7 kW
            regulating wheel turning speeds 5 - 600 (900) U/min
            grinding wheel adjustment 0,0001 mm
            total power requirement 56 kW
            weight of the machine ca. 13 t
            dimensions of the machine ca. 5,7 x 3,3 x 2,3 m
            Description :
            Centerless grinding machine for infeed & through feed grinding,
            Equipped with:
            - CNC control Siemens Sinumerik 840 D
            - Balancing electronics MPM AB / SB 100
            - ASW Portal gripper for shafts (regulating slide) with feed & discharge belt
            - Pallet circulation system (SCHUSTER)
            - Measuring point Etamic for regulating slide

            2 machines available (2002/2003)
          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Centerless GHIRINGHELLI M 200 ikinci el araç


          • STEINHAND GmbH
          • Wiehagen 10
          • 45472 Mülheim a.d. Ruhr
          • Deutschland

          • +49 (0) 208 / 78 239 760
            +49 (0) 208 / 78 239 685
          • info@steinhand.de
            www.steinhand.de
          #2026-3038 · Grinding Machine - Centerless

          GHIRINGHELLI - M 200 - - 2001 - Siemens 840D

          Technical details
          max. grinding diameter 610 mm︱grinding diameter - min. 440 mm︱grinding wheel width 20 - 70 - 80 - 110 - 203 mm︱Control Siemens 840D ︱max. speed 50 m/s︱largest grinding diameter 175 mm︱smallest grinding diameter 2 mm︱Number of axles 7 St.︱grinding length plunge grinding 190 mm︱
          The machine is in a good condition (partly overhauled). All ballscrews were checked. All guides were the delivery axes exchanged, as well as the guides and carriages the loading unit. Last maintenance / repair: - Repair V-axis (replacement ball screw) - Exchange guides Z, V, Y, X, X1 u. Y1 axis and the loading unit - Coating running surface of the regulating wheel spindle - Coating tread helical gear and replacement of the worm - Cleaning the machine - Replacement of all belts (machine and loading unit) - Exchange geared motor (shaker) and the glass scales upper slide and lower slide Accessories of the machine: - Loading unit with tact band and chain (including various pliers shots) - Loading- and unloading belt - Hydraulic unit - various edition ruler holder - various lifting shots for the production of various parts - 1 pcs each of regulating wheels and grinding wheel flange - 1 set of documentation and wiring diagram - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: M200
            max. grinding diameter 610 mm
            grinding diameter - min. 440 mm
            grinding wheel width 20 - 70 - 80 - 110 - 203 mm
            Control Siemens 840D
            max. speed 50 m/s
            largest grinding diameter 175 mm
            smallest grinding diameter 2 mm
            Number of axles 7 St.
            grinding length plunge grinding 190 mm
            Description :
            The machine is in a good condition
            (partly overhauled). All ballscrews were checked.
            All guides were the delivery axes
            exchanged, as well as the guides and carriages
            the loading unit.

            Last maintenance / repair:

            - Repair V-axis (replacement ball screw)
            - Exchange guides Z, V, Y, X, X1 u. Y1 axis and the loading unit
            - Coating running surface of the regulating wheel spindle
            - Coating tread helical gear and replacement of the worm
            - Cleaning the machine
            - Replacement of all belts (machine and loading unit)
            - Exchange geared motor (shaker) and the glass scales
            upper slide and lower slide


            Accessories of the machine:

            - Loading unit with tact band and chain
            (including various pliers shots)
            - Loading- and unloading belt
            - Hydraulic unit
            - various edition ruler holder
            - various lifting shots for the production of various parts
            - 1 pcs each of regulating wheels and grinding wheel flange
            - 1 set of documentation and wiring diagram

            - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
            #Tags: M200
          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Centerless LIDKOPING CL 660 ikinci el araç


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com
          #1049-622958 · Grinding Machine - Centerless

          LIDKOPING - CL 660 - - 1992 -

          Technical details
          grinding diameter max. 250 mm︱regulating wheel width 610 mm︱max. width of grinding wheel 610 mm︱total power requirement 110 kW︱weight of the machine ca. 12 t︱dimensions of the machine ca. m︱
            grinding diameter max. 250 mm
            regulating wheel width 610 mm
            max. width of grinding wheel 610 mm
            total power requirement 110 kW
            weight of the machine ca. 12 t
          Datasheet
          Request / Contact
          Taşlama makineleri kullanılan Taşlama Makinesi - Merkezsiz Nomoco M 20


          • GWM GmbH
          • Gewerbestr. 2
          • 79639 Grenzach-Wyhlen
          • Deutschland

          • (0049) 7624 9082 0
            07624 9082-206
          • info@gromag.ch
            www.gromag.ch
          #1044-2993 · Grinding Machine - Centerless

          Nomoco - M 20 - - 1991 -

          Technical details
          grinding diameter max. 40 mm︱regulating wheel width 100 mm︱max. width of grinding wheel 110 mm︱max. grinding length (infeed grinding) 110 mm︱grinding wheel size 300x100 mm︱min. dia. 0,2 mm︱weight of the machine ca. 2,1 t︱total power requirement 6,8 kW︱
          machine is equipped for plunch-grinding via a pneumatic-driven loading device. accessories: 1 control wheel, various guide plates for dressing the discs. coolant device with magnetic cut-off
            grinding diameter max. 40 mm
            regulating wheel width 100 mm
            max. width of grinding wheel 110 mm
            max. grinding length (infeed gri. 110 mm
            grinding wheel size 300x100 mm
            min. dia. 0,2 mm
            weight of the machine ca. 2,1 t
            total power requirement 6,8 kW
            Description :
            machine is equipped for plunch-grinding via a pneumatic-driven loading device.
            accessories: 1 control wheel, various guide plates for dressing the discs.
            coolant device with magnetic cut-off

          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Merkezsiz WMW SASL 125 / 1 A


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com
          #1049-6794045 · Grinding Machine - Centerless

          WMW - SASL 125/1 A - - 1985 - NUM CNC 1020

          Technical details
          grinding diameter max. 100 mm︱regulating wheel width 127 mm︱max. width of grinding wheel 305 mm︱Control NUM CNC 1020 ︱total power requirement 25 kW︱weight of the machine ca. 6000 kg︱dimensions of the machine ca. m︱
          W M W - MIKROSA Centreless Grinder with Thru-Feed Grinding Device Model SASL 125 / 1 A Year approx. 1985 / in 2000 modernized S/Nr. 16.46-70-57 _____________________________________________________________ Grinding Ø regular/maximal 2 – 80/120 mm Max. length of workpiece for Thru-Feed-grinding 350 mm Max. length of workpiece for plunge-cut grinding 200 mm Grinding wheel size, Ø x width 600 x 250 x 305 mm Regulating wheel size, Ø x width 300 x 200 x 127 mm Grinding wheel speed, max. variable 35 – 45 m/sec. Regulating wheel speeds (stepless) dressing 10 – 480/315 rpm Regulating wheel tilt plus/minus +3 / –6 ° Stroke of Dressing Device approx. 300 mm Grinding wheel drive, approx. 15 kW Total electrical load approx. 25 kW - 400 V - 50 Hz Weight approx. 4.500 kg Accessories/Special Features: * This Maschine was reconditioned and retrofitted some years ago with a CNC Control make NUM 1020, all functions can be released directly on the Control unit, for instance the speed of grinding wheel, regulating wheel and of the dressing slide can be steplessly adjusted by potentiometers and displayed on a digital read out. Furthermore there is an electronic handwheel to move the axis manually. Infeed position of regulating slide. * There is no dressing device mounted on the grinding spindle, however it is available a manually driven tool for cleaning a diamant covered grinding wheel. We assume that previous owner has ground hardmetal bars by thru-feed cycle. * Above the regulating wheel there is mounted a dressing / profiling device via templates driven by a steplessly adjustable electric motor. Infeed of diamant head manually. * Thru-Feed workpiece rest built on the regulating slide with adjustable jaws The thru-feed of the workpieces are generated by inclination of the regulating spindle head. * The switch cabinet is built on the side of the machine, also the hydraulic unit. * Modern central lubrication unit. * ! Actually there is no Coolant device available ! Condition : Good to very good. Machine can be soon inspected under power. However it would be a ideal Piece for special purposes or reconditioning. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.
            grinding diameter max. 100 mm
            regulating wheel width 127 mm
            max. width of grinding wheel 305 mm
            Control NUM CNC 1020
            total power requirement 25 kW
            weight of the machine ca. 6000 kg
            Description :
            W M W - MIKROSA
            Centreless Grinder with Thru-Feed Grinding Device
            Model SASL 125 / 1 A
            Year approx. 1985 / in 2000 modernized S/Nr. 16.46-70-57
            _____________________________________________________________

            Grinding Ø regular/maximal 2 – 80/120 mm
            Max. length of workpiece for Thru-Feed-grinding 350 mm
            Max. length of workpiece for plunge-cut grinding 200 mm

            Grinding wheel size, Ø x width 600 x 250 x 305 mm
            Regulating wheel size, Ø x width 300 x 200 x 127 mm

            Grinding wheel speed, max. variable 35 – 45 m/sec.
            Regulating wheel speeds (stepless) dressing 10 – 480/315 rpm
            Regulating wheel tilt plus/minus +3 / –6 °
            Stroke of Dressing Device approx. 300 mm

            Grinding wheel drive, approx. 15 kW
            Total electrical load approx. 25 kW - 400 V - 50 Hz
            Weight approx. 4.500 kg

            Accessories/Special Features:

            * This Maschine was reconditioned and retrofitted some years ago with a
            CNC Control make NUM 1020, all functions can be released directly on the
            Control unit, for instance the speed of grinding wheel, regulating wheel and
            of the dressing slide can be steplessly adjusted by potentiometers and
            displayed on a digital read out. Furthermore there is an electronic
            handwheel to move the axis manually. Infeed position of regulating slide.
            * There is no dressing device mounted on the grinding spindle, however it is
            available a manually driven tool for cleaning a diamant covered grinding
            wheel.
            We assume that previous owner has ground hardmetal bars by thru-feed cycle.
            * Above the regulating wheel there is mounted a dressing / profiling device
            via templates driven by a steplessly adjustable electric motor. Infeed of
            diamant head manually.
            * Thru-Feed workpiece rest built on the regulating slide with adjustable jaws
            The thru-feed of the workpieces are generated by inclination of the
            regulating spindle head.
            * The switch cabinet is built on the side of the machine, also the hydraulic
            unit.
            * Modern central lubrication unit.
            * ! Actually there is no Coolant device available !


            Condition : Good to very good. Machine can be soon inspected under power.
            However it would be a ideal Piece for special purposes or
            reconditioning.
            Delivery : Ex stock, as inspected.
            Payment : Net, after conclusion of contract.

          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Centerless HARTEX BED 4 II ikinci el araç


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com
          #1049-717322 · Grinding Machine - Centerless

          HARTEX - BED 4 II - - 1981 -

          Technical details
          grinding diameter max. 50 mm︱regulating wheel width 127 mm︱max. width of grinding wheel 203 mm︱total power requirement 15 kW︱weight of the machine ca. 4000 kg︱dimensions of the machine ca. m︱
            grinding diameter max. 50 mm
            regulating wheel width 127 mm
            max. width of grinding wheel 203 mm
            total power requirement 15 kW
            weight of the machine ca. 4000 kg
          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Merkezsiz BRYANT 45 M / Seri No. B 16049


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com

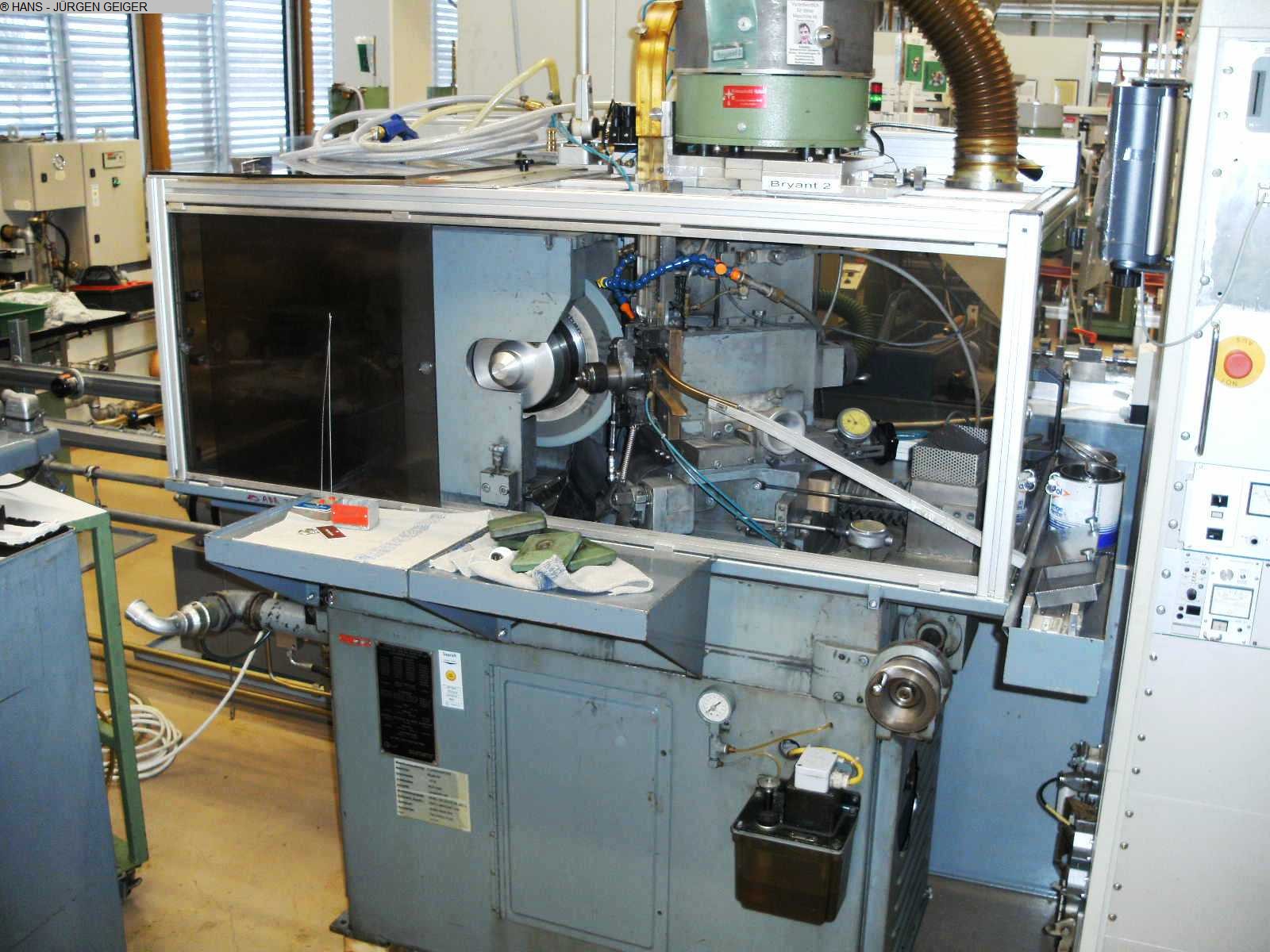

          #1049-491377 · Grinding Machine - Centerless

          BRYANT - 45 M / Serial No. B 16049 - - 1973 -

          Technical details
          grinding diameter max. 30 mm︱regulating wheel width 12 mm︱max. width of grinding wheel mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱
            grinding diameter max. 30 mm
            regulating wheel width 12 mm
          Datasheet
          Request / Contact
          Taşlama makineleri kullanılan Taşlama Makinesi - Merkezsiz KOENIG & BAUER M 110


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com
          #1049-709051 · Grinding Machine - Centerless

          KOENIG & BAUER - M 110 - - 1972 -

          Technical details
          grinding diameter max. 35 mm︱regulating wheel width 110 mm︱max. width of grinding wheel 110 mm︱total power requirement 10 kW︱weight of the machine ca. 3000 kg︱dimensions of the machine ca. m︱
            grinding diameter max. 35 mm
            regulating wheel width 110 mm
            max. width of grinding wheel 110 mm
            total power requirement 10 kW
            weight of the machine ca. 3000 kg
          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Centerless KOENIG-BAUER Multimat ikinci el araç


          • Christoph Busch GmbH
          • Dieselstr. 22
          • 41352 Korschenbroich
          • Deutschland

          • +49 (0) 2182 570 5930
            +49 (0) 2182 5785202
          • mail@busch-gruppe.de
            www.busch-gruppe.de
          #2052-04786 · Grinding Machine - Centerless

          KOENIG-BAUER - Multimat - - 1970 -

          Technical details
          max. width of grinding wheel 310 x 110 mm︱weight of the machine ca. 2 t︱
            max. width of grinding wheel 310 x 110 mm
            weight of the machine ca. 2 t
          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Centerless MALCUS MC 50 ikinci el araç


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com
          #1049-726648 · Grinding Machine - Centerless

          MALCUS - MC 50 - - 1967 -

          Technical details
          grinding diameter max. 200 mm︱regulating wheel width 150 mm︱max. width of grinding wheel 305 mm︱total power requirement 35 kW︱weight of the machine ca. 5000 kg︱dimensions of the machine ca. m︱
            grinding diameter max. 200 mm
            regulating wheel width 150 mm
            max. width of grinding wheel 305 mm
            total power requirement 35 kW
            weight of the machine ca. 5000 kg
          Datasheet
          Request / Contact
          Taşlama makineleri Taşlama Makinesi - Centerless MALCUS MC 50 ikinci el araç


          • HANS - JÜRGEN GEIGER
          • James-Watt-Str. 12
          • 72555 Metzingen
          • Deutschland

          • (0049)-7123-18040
            (0049)-7123-18384
          • geiger@geiger-germany.com
            www.geiger-germany.com
          #1049-726858 · Grinding Machine - Centerless

          MALCUS - MC 50 - - 1966 -

          Technical details
          grinding diameter max. 200 mm︱regulating wheel width 150 mm︱max. width of grinding wheel 305 mm︱total power requirement 35 kW︱weight of the machine ca. 5000 kg︱dimensions of the machine ca. m︱
            grinding diameter max. 200 mm
            regulating wheel width 150 mm
            max. width of grinding wheel 305 mm
            total power requirement 35 kW
            weight of the machine ca. 5000 kg
          Datasheet
          Request / Contact
          Taşlama makineleri kullanılan Taşlama Makinesi - Merkezsiz KOENIG & BAUER Multimat 150-6


          • Marcels Maschinen AG
          • Anthoptstrasse 11
          • 8222 Beringen (Schaffhausen)
          • Schweiz

          • (0041) 44 872 3400
            (0041) 44 872 3403
          • info@marcels-maschinen.ch
            http://www.marcels-maschinen.ch
          #1065-4446 · Grinding Machine - Centerless

          KOENIG & BAUER - Multimat 150-6 - - -

          Technical details
          grinding diameter max. 2-100 mm︱regulating wheel width 200 mm︱max. width of grinding wheel 200 mm︱weight of the machine ca. 4.6 t︱
          www.marcels-maschinen.ch
            grinding diameter max. 2-100 mm
            regulating wheel width 200 mm
            max. width of grinding wheel 200 mm
            weight of the machine ca. 4.6 t
            Description :

            www.marcels-maschinen.ch
          Datasheet
          Request / Contact
